About this item

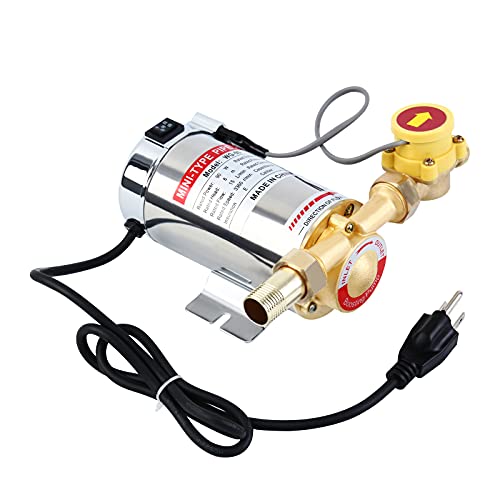

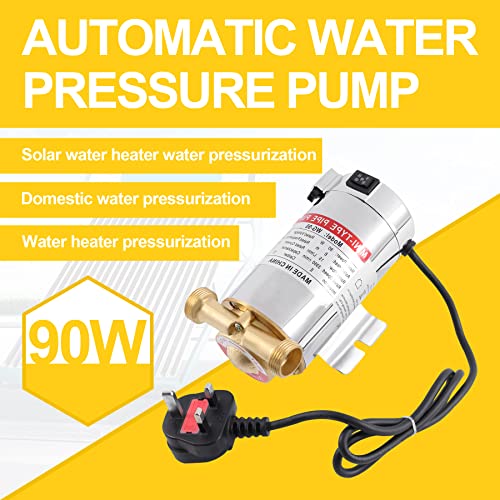

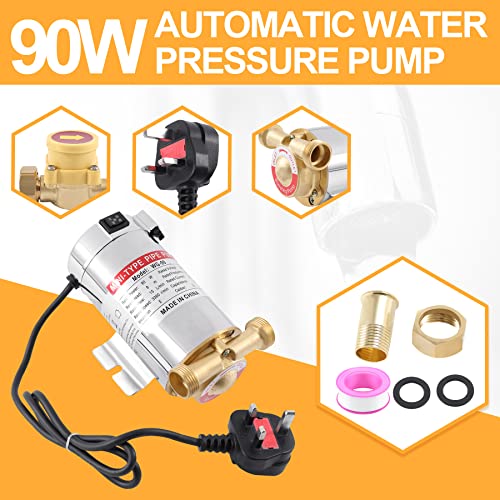

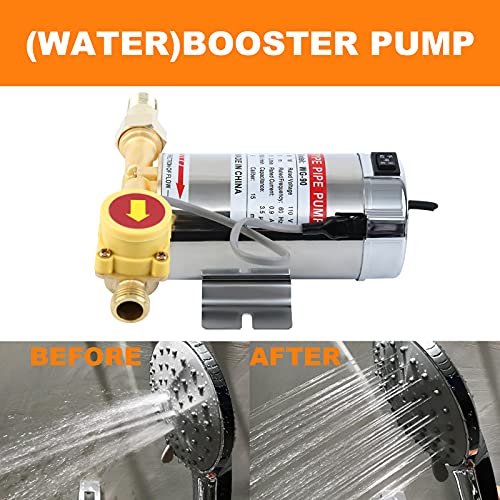

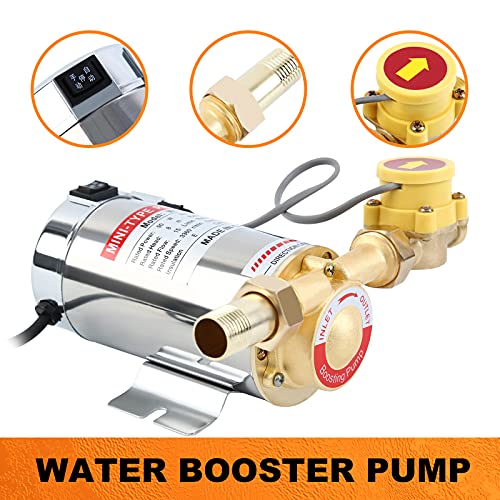

• 👉DURABLE PUMP: Equipped with brass pump head and brass impeller, the water booster pump enhances the long term use and corrosion-resistance, suitable for faucet booster, water heater booster, smart toilet booster, wall-hung boiler booster, shower head booster.
• 👉AUTOMATIC WATER PUMP: Working with low noise, the whole pump is sealed well and the conveyed water will be clean and sanitary. Intelligent dual control system: Automatic control: Start with water, when you don’t need the water, it would automatically close. Manual control: When the water flow is too small, it can be forced to start. Stop: When you don’t need to use it for a long time, you can set the shutdown protection.
• 👉WORKING LONGER HOURS: The pressure booster pump is designed to be low temperature, small volumn, delicate appearance and long-working time, effectively solving the lit fire properly of shower owing to the lower pressure and unreliable pressure. The pump is used on pipes with acceptable water flow and then can start or stop automatically. If there is no or very little water flow, it would not fit.
• 👉EASY TO USE: Small size but having great power to increase domestic water circulating system, perfect for boosting pressure for household water heater. Up to 15psi maximum pressure with booster pump. The diameter of the pump port is 1 inch (25mm), the water flow switch and port are 3/4 inch (20mm), and the thread is metric.
• 👉DECENT SERVICE: Motor is made of pure copper coil, the pump body is made of stainless iron, and the pump head and impeller are made of pure copper. Your choice of our booster pump is pretty appreciated when ordering today. If you have any other concerns about the installation and usage, please feel free to contact us.
•


  Intelligent dual control system

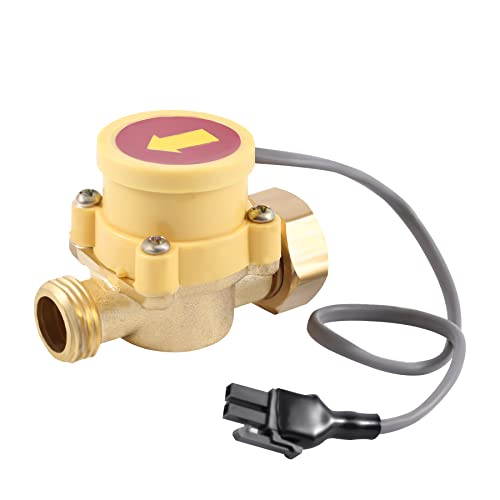

  • Automatic control: Start with water, when you don’t need the water, it would automatically close.
  • Manual control: When the water flow is too small, it can be forced to start.
  • Stop: When you don’t need to use it for a long time, you can set the shutdown protection.



  Motor   Low temperature Compact design Could work for a long time under low noise mode	Automatic pump   Equipped with an automatic switch Controlled by the water flow Flexibly working, saving electricity, easy to use	High quality   The whole pump is sealed well Brass pump head, brass impeller The pump automatically pressurises when the tap is open and switches off when the tap is closed










  SPECIFICATIONS



  • Rated head: 8m
  • Highest Head: 10m
  • Rated capacity: 8L/min
  • Max capacity: 15L/min
  • Maximum speed: 3360r/min
  • Motor rated voltage: 110v
  • Motor max. current: 0.9A
  • Motor wire material: copper
  • Motor power input max.: 90w





  • Motor mains frequency: 60HZ
  • Motor shell material: Stainless steel
  • Impeller & Pump body material: brass

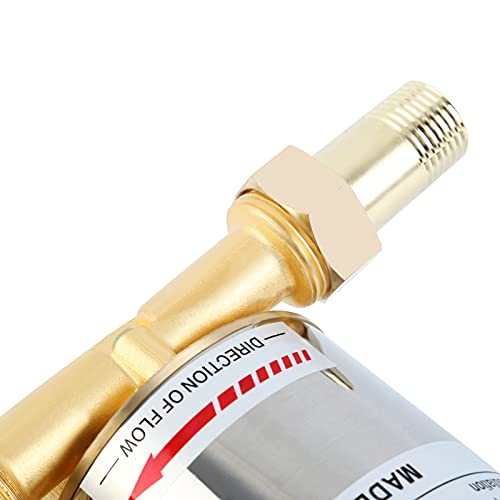

  • Pump interface size: 3/4 (outer diameter 25mm)
  • Installation size, pipe connection: 1" or with adapter 3/4"
  • Dimensions of connector and water flow switch: 1/2 (outer diameter 20mm)
  • Installation max. operating pressure: aprox 15psi



  TIPS



  1. The pump is used on pipes with acceptable water flow and then can start or stop automatically. If there is no or very little water flow, it would not fit.
  2. Do not install upside down, to prevent leakage into the interior of the motor, causing a short circuit and burn out the motor.
